Flood Solutions
Waterproof Tarpaulin Covers
Description
Heavy-Duty Waterproof Tarpaulin Covers
Military-Grade Marine Tarps Engineered for Maximum Durability & Protection
Refloworx’s Heavy-Duty Waterproof Tarpaulin Covers are precision-engineered to meet exacting military and marine specifications. Designed for critical asset protection in extreme environments, each cover is manufactured to comply with FED-STD-191A requirements, ensuring unmatched waterproofing, tear resistance, and long-term durability in coastal, industrial, and field applications.
Product Overview
Our Heavy-Duty Waterproof Tarpaulin Covers are not standard tarps—they are engineered protection systems built to stringent material specifications. Using high-tenacity polyester base fabric with reinforced PVC coating, each cover is tested and certified to meet FED-STD-191A standards for thickness, tensile strength, tear resistance, and adhesion. Ideal for military equipment, marine vessels, construction machinery, and outdoor industrial storage, these covers provide reliable, long-term protection against water, UV, and mechanical stress.
Available in custom sizes with integrated attachment systems, they are the professional choice where failure is not an option.
Material Specifications & Compliance
Specification
Requirement
Test Standard
Our Compliance
Thickness
0.64 mm – 0.69 mm
FED-STD-191A-5030 or equivalent
0.67 mm nominal
Tensile Strength
Warp: ≥1600 N
Weft: ≥1370 N
FED-STD-191A-5102 or equivalent
Warp: 1750 N
Weft: 1450 N
Tearing Strength
Warp: ≥500 N
Weft: ≥430 N
FED-STD-191A-5134 or equivalent
Warp: 550 N
Weft: 460 N
Adhesion Strength
Warp: ≥120 N/51mm
Weft: ≥110 N/51mm
FED-STD-191A-5970 or equivalent
Warp: 135 N/51mm
Weft: 125 N/51mm
Waterproofing
No water penetration
Hydrostatic Pressure Test
≥1500 mm water column
Base Fabric
High-tenacity polyester
—
1000D Polyester
Coating
PVC reinforced
—
Double-sided PVC laminate
All material certifications and test reports available upon request.
Standard Features
Fabric & Construction
- Material: Heavy-duty 1000D polyester with double-sided PVC coating
- Thickness: 0.67 mm (within 0.64–0.69 mm specification)
- Color: Dark grey (RAL 7024 or equivalent)
- Waterproofing: Fully waterproof; seams are heat-welded or double-stitched and sealed
- UV Resistance: UV-stabilized coating for extended outdoor use
- Temperature Range: -30°C to +70°C
Reinforcement & Stitching
- Thread: High-strength polyester thread (Tex 70 or higher)
- Stitching: Double-needle lockstitch on all seams and stress points
- Edge Binding: Reinforced polyester webbing on all perimeter edges
- Seam Sealing: All stitched seams are sealed with waterproof PVC tape
Attachment & Fastening System
- Fastening Straps: 30 mm wide black nylon webbing (1000D+), every 600–800 mm
- Ladder Lock Buckles: Non-corrosive polyamide or stainless steel
- Velcro Closure: 50 mm wide heavy-duty hook-and-loop at access points
- Eyelets: 20 mm inner diameter brass or stainless steel, reinforced with PVC patches
- Corner Reinforcement: Additional PVC patches and webbing at all corners
Customization Options
Standard Configurations
- Size Range: From 2×3 m to 12×20 m (custom dimensions available)
- Shape: Rectangular, square, or custom patterns with drafted designs
- Access Features: Zippered openings, roll-up panels, vented sections
- Printing: Optional logos, identification numbers, or safety markings
Specialized Variants
- Fire-Retardant: FR-treated fabric meeting CPAI-84 or EN 13772
- Camo Pattern: Military camouflage (woodland, desert, urban)
- Insulated: Foam-backed for thermal protection
- Anti-Stat: ESD-safe for covering sensitive electronics

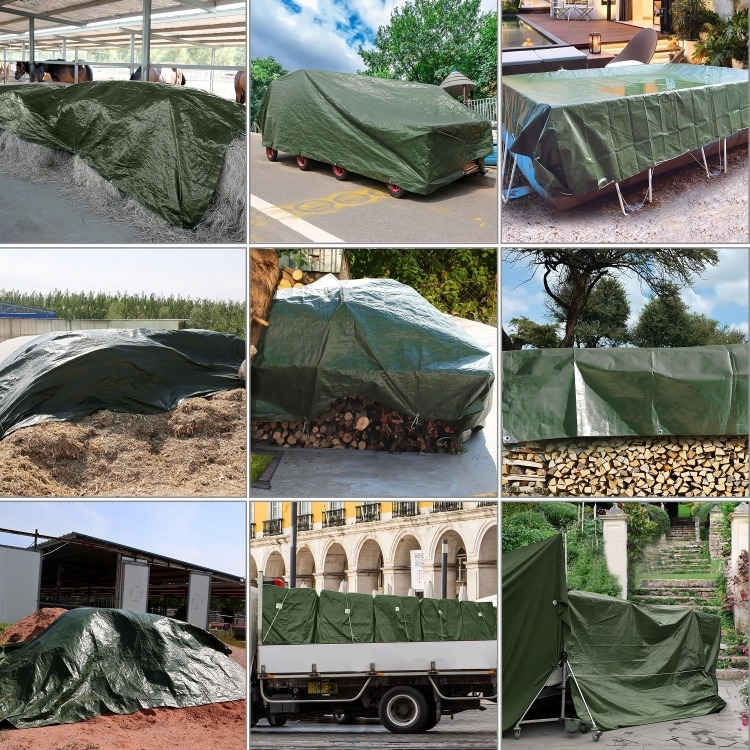

Applications
- Military & Defence: Vehicle covers, equipment protection, temporary shelters
- Marine: Boat covers, dock equipment protection, container tarps
- Construction & Mining: Machinery covers, material storage, site protection
- Transport & Logistics: Truck tarps, cargo protection, aviation equipment
- Emergency Response: Temporary shelter roofs, equipment protection
- Industrial: Outdoor storage, pipe protection, refinery equipment covers
Quality Assurance
Every Refloworx tarpaulin cover undergoes rigorous quality checks:
- Material Inspection: Incoming fabric tested for weight, thickness, and coating integrity
- In-Process Checks: Stitch density, seam alignment, and reinforcement placement
- Final Inspection: Water spray test, dimensional verification, and hardware check
- Certification: Optional third-party laboratory testing with full test reports
Technical Comparison vs. Standard Tarps
Feature
Standard Commercial Tarp
Refloworx Spec-Compliant Tarp
Fabric Weight
180–250 g/m²
450–500 g/m²
Tensile Strength
600–900 N
1450–1750 N
Waterproof Guarantee
6–12 months
5+ years
Stitching
Single row, often unsealed
Double row, sealed seams
Hardware
Plastic buckles, rust-prone eyelets
Non-corrosive, reinforced
Certification
None
FED-STD-191A compliant
Care & Maintenance
- Cleaning: Use mild soap and water; avoid harsh chemicals
- Storage: Clean and dry before folding; store in cool, dry place
- Repairs: Small tears can be field-repaired with PVC repair tape
- Inspection: Check straps, eyelets, and seams periodically for wear
Ordering Process
- Specify Dimensions: Provide length, width, and any special features
- Select Options: Choose hardware, access points, and reinforcements
- Manufacturing: 10–15 working days for standard sizes
- Delivery: Worldwide shipping with tracking
Why Choose Refloworx Tarpaulins?
✅ Specification Compliance: Guaranteed to meet FED-STD-191A requirements with test documentation
✅ Marine-Grade Durability: UV, mold, and saltwater resistant for harsh environments
✅ Professional Construction: Double-stitched seams, reinforced edges, non-corrosive hardware
✅ Custom Manufacturing: Made-to-measure for perfect fit and function
✅ Technical Support: Engineering assistance for specialized applications
✅ Quality Documentation: Material certificates and test reports provided
Engineered Protection. Certified Performance.
Refloworx Heavy-Duty Waterproof Tarpaulin Covers – Where specifications matter.
