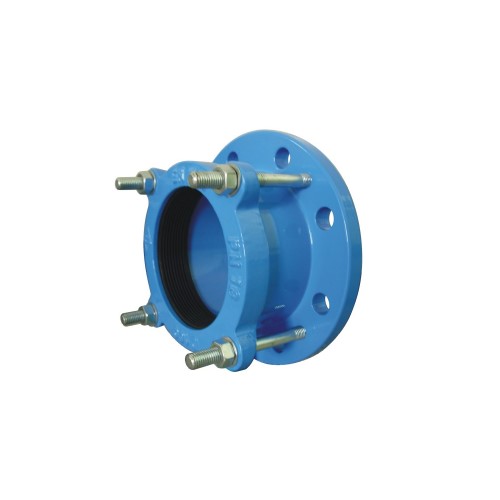

Universal Flange Adaptors
Description
Our Universal Flange Adaptors are designed to join pipes of different outside diameters (OD) with the same or different nominal bore.
The corrosion protection scheme for Refloworx’s universal flange adaptors is available in Fusion Bonded Epoxy (FBE), Epoxy paint and Galvanized finish as standard. Other coatings options are available on request.
The universal flange adaptors’ application ranges from the transmission of potable water, wastewater and sewage to the marine, mining, oil, gas and general industrial sectors.
REFLOWORX Universal Gaskets, EPDM or NBR materials, are designed to provide a leak-tight seal while allowing thermal expansion and contraction of the pipe up to 5mm per gasket. However, using lubrication with a suitable, non-toxic soap solution is advised to facilitate the installation and avoid any potential damage due to load while seating. The universal flange adaptors can be manufactured with double or full sleeves to prevent end pullout on PE and GRP pipes.
Specifications
PN
PN10-PN16
DN
58.0 to 462.0 mm
Medium
Water, wastewater, sewage
Flange Drilling
Accordance to EN1092-1, PN10 or PN16. Available on request for ANSI B16 Class 125/ 150, BS10 Table D/ E
Tolerance on Angular Deflection
Max +/- 6 degree
Adaptor Flange
Ductile Iron BS EN1563 GJS 500/7
End Flange
Ductile Iron BS EN1563 GJS 500/7
Gasket
EPDM or NBR
Stud Bolt
Stainless steel A2, A4 is optional
Nut
Stainless steel A2, A4 is optional
Washer
Stainless steel A2, A4 is optional
Coating
Min 250μ Epoxy Coating RAL 5017 blue, WRAS approved
Application
Pumping stations | Utilities | Wastewater treatment plants | Seawater desalination plants | Power plants | Chemical plants | Industrial
Features
- ISO 9001 certified
- In-house production design, utilizing the latest CAD softwares, supported by technical staff and finite element analysis programmes
- Stringent raw material quality control and certification from international test laboratories
- Product approvals held for many countries worldwide
- In house quality control at all stages of production, with Hydrostatic Test Facilities
