Data Logger for Gas Meters

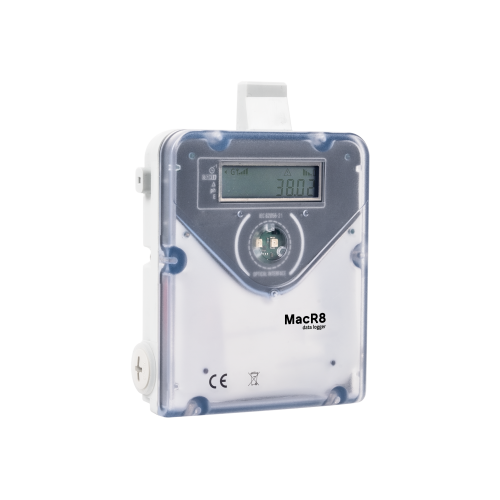

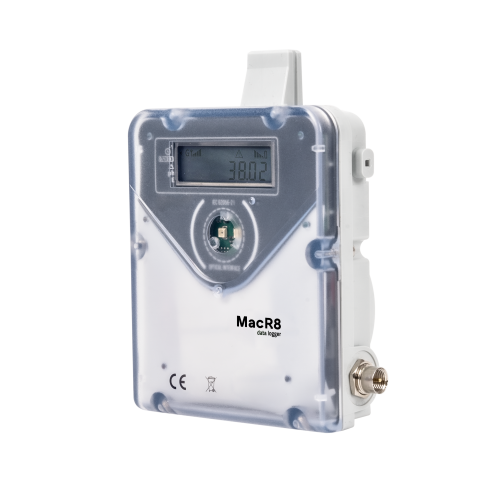

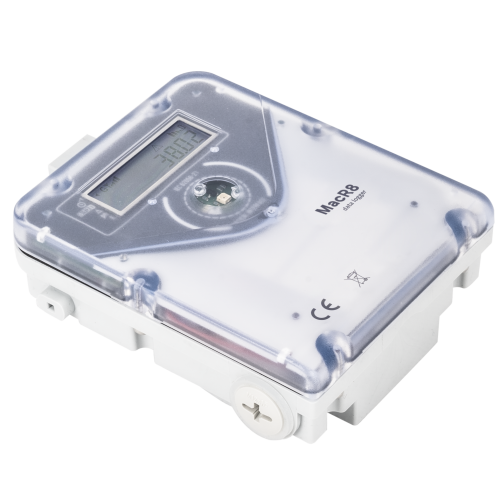

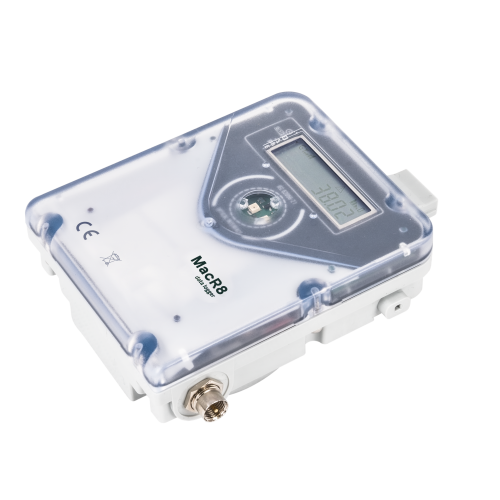

MacR8 Gas Data Logger
- Support for low energy LPWAN mobile network data transmission technologies: LTE Cat.M1 and NB-IoT (LTE Cat.NB2)
- Supports Mobile Virtual Network Operators (MVNOs)
- Standard commercially available D-size lithium battery, up to 15 years of operation
- LCD display presenting connection status, network level, battery status and volume increment logging
- IEC 62056 optical interface for configuration
- Effective data transmission in harsh environments
- Dedicated mobile application for device configuration and reading logged data
- Implemented SMART-GAS, DLMS or GAZ-MODEM protocols
- Collaboration with diaphragm, rotary, and turbine gas meters with reed switch or OC output type
- Optional built-in outputs: pulse outputs for counting and control
Description
AMR data logger for diaphragm gas meters with a built-in IoT LTE Cat.M1, NB-IoT, 2G module. The main purpose of this data logger is to transmit information about registered gas consumption and alarm states to the data collection system. Device allows integration into the local Building Management System (BMS) and control of tariff power usage. Our gas data logger is named MacR8 and is designed to operate in Zone 2
hazardous areas (available version of the device designed for operation in zone 0 hazardous areas – MacR6-Z0-V).
About MacR8 Gas Logger
- Low operating cost; powered by the most economically efficient 20Ah battery
- Works in challenging locations, even with signal drops of up to 164 dBm
- Up to 15-years operating period without battery replacement
- Automatic tampering notifications
- Intuitive and fast configuration via ConfIT! application for data loggers
Why choosing MacBAT 5 gas volume corrector?
Log all measurement events and maintain continuous access to the station’s operational history | Implement tariff price management to ensure precise and timely billing of gas consumption. | Reduce meter reading service costs | transmit data safely using NB-IoT technology |
Record data from any gas meter using dedicated adapters |
Applications
Remote Data Reading Remote data reading using MacR8 (direct and wired LF/TS connection). |
Plz take the photos from this page:https://gas.plum.pl/en/product/macr8/ |
System Diagram Automatic control system diagram for ordered power usage. |  |
local reading and configuration Local reading and configuration of MacR8 |  |
Technical Data
Dimensions / weight: | 124 x 90 x 40 mm/ 1 kg |
Casing material: | Polycarbonate |
Relative humidity: | max. 95%, at temp. 55°C |
Operating temperature range: | min. -30°C, max. 60°C |
Display: | Segment LCD display |
Power supply: | Standard replaceable lithium battery, size D |
