Valves
Metal Seated Gate Valves
Description
Refloworx designs metallic-sealing gate valves for high operating pressures and applications involving wastewater, sewage and other relevant areas.

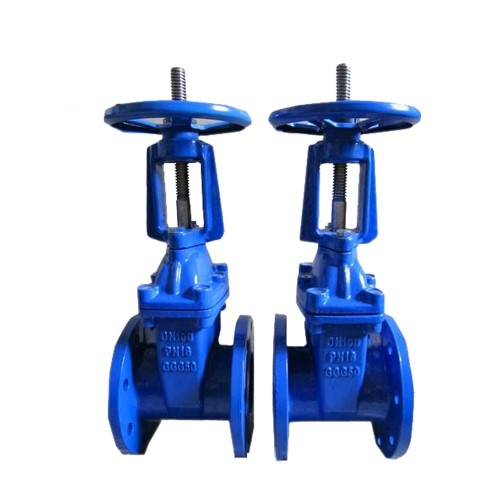

They are produced in both Non-Rising Stem (NRS), Outside Screw & Yoke (OS&Y) versions as well as Rising Spindle (RS) versions for fire service applications where a positive indication of open and closed position is necessary.
Specifications
PN
1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 63
DN
50-1200
Medium
Water | Wastewater | Seawater
Application
Transmission pipeline | Distribution network | Waste water treatment plants | Seawater plants | Dams | Power plants | Industrial applications
Specifications
- Sealing system: Metallic sealing in accordance with EN 1171, gunmetal faced seal type in accordance with BS 5150, AWWA C500 standards, as well as ANSI and ASTM standards
- Flanges and bolt pattern conform to EN1092 or ANSI B16.1
- Available in non-rising stem type (NRS), rising stem type and Outside Screw & Yoke (OS&Y) versions
- Available with by-pass valve assembly, position indicator, etc.
